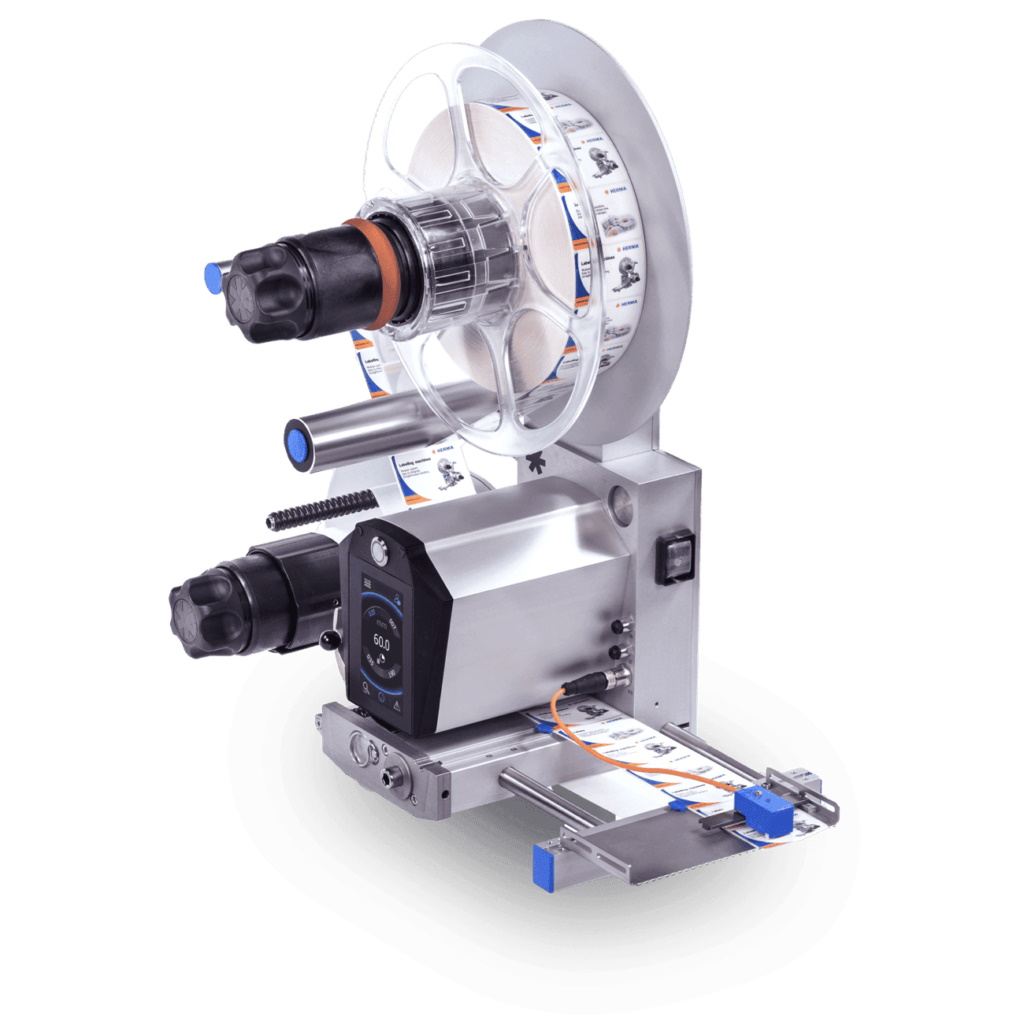

HERMA 500

Supreme performance in every respect – that‘s what HERMA applicators worldwide stand for. The HERMA 500 is exploring new horizons. Thanks to its extensive connectivity, it is ready for the Industrial Internet of Things (IIoT) and future-proof in every perspective. Running at up to 200 meters or 2,000 labels a minute, the HERMA 500 is one of the top performers.

In synchronous mode with motorized winders and a loop unit, the labels are applied with unrivalled accuracy. An optional cooling element ensures outstanding performance even during 24/7 continuous operation. With its wide range of configuration variants in modular design, the HERMA 500 is a genuine all-rounder.

Product Description

Speed with ease:

4,3-inch color touchscreen with rotatable display offers innovative menus and intuitive operation. Time-saving setup with intelligent features and pioneering technologies.

Compelling quality:

Uniform base unit with premium built quality for all configuration variants.Maximum reliability achieved by full testing of every applicator in series production.

Forward-looking security:

Future-proof interfaces and simple function and performance upgrades via code activation. Long-term availability of all parts and comprehensive support worldwide – on-site or online in the HERMA Service Portal.

Fast set-up:

Short set-up times thanks to innovative technologies including quick-change systems and automatic detection of label length.

Comfortable operation:

4,3-inch touchscreen displays clear, explicit icons with intuitive menu navigation and customized settings.

Targeted information:

Favored parameter settings are directly displayed on the start screen and supplement the quick access to the menu, search function and user-level settings.

Enhanced performance:

High-speed labelling at up to 200 meters or 2,000 labels a minute synchronized with production speed.

Label specifications

Label width: 80 / 160 / 240 / 320 mm • 3.1“ / 6.3“ / 9.4“ / 12.6“
Reel diameter: 300 / 400 / 500 / 600 mm • 11.8“ / 15.7“ / 19.7“ / 23.6“

Technical specifications

Mounting form

Orientation: Left-hand unit • right-hand unit

Base unit HERMA 500

Labeling speed: 0 – 30 / 50 / 80 / 150 / 200 m/min
0 – 98 / 164 / 262 / 492 / 656 ft/min
Interfaces: I/O interface • Industrial Ethernet • Ethernet TCP/IP •
OPC UA • CAN bus • master encoder • start signal •
label sensor • printer • transfer system • power out
Labeling functions: Master encoder operation • CAN machine control
UL and CSA certification: Optional

Label sensor

Sensor type: Forked light barrier • FS03 for sensing the last label •
ultrasonic forked sensor

Operation

Operation via pictograms on the 4,3-inch color touchscreen • quick access
to 4 parameters, menu, user administration, search, messages, operation on/off •
format management • language selection • can be operated with gloves •
button for manual label feed • main switch for complete mains disconnection

Displays

Display rotatable in 90° steps • display of configurable main parameter •
status display: ready, warning, malfunction in various colors •
display of threading guide • display of user manual

Service functions

Remote access via web browser • functional upgrade via code activation •
firmware update via Ethernet TCP/IP

Control

Drive technology: AC servo motor
Control technology: Fully integrated in the HERMA 500

Operating data

Power supply: 100 – 240 V AC, 400 W, 50 – 60 Hz
Operating temperature: 0 – 40° C • 32 – 104° F
Protection class: IP66
