Product Description
Precision and fast cycle times:
Ideal for precise labeling of cosmetic products with decorative labels. High-precision application of functional labels and self-adhesive functional elements, such as pressure compensation elements, membranes and RFID labels.
Easy integration:
Compact design for easy integration into production lines – perfectly suitable for OEMs. No additional control system required, integration into a higher-level machine control system on request.
Convenient operation:

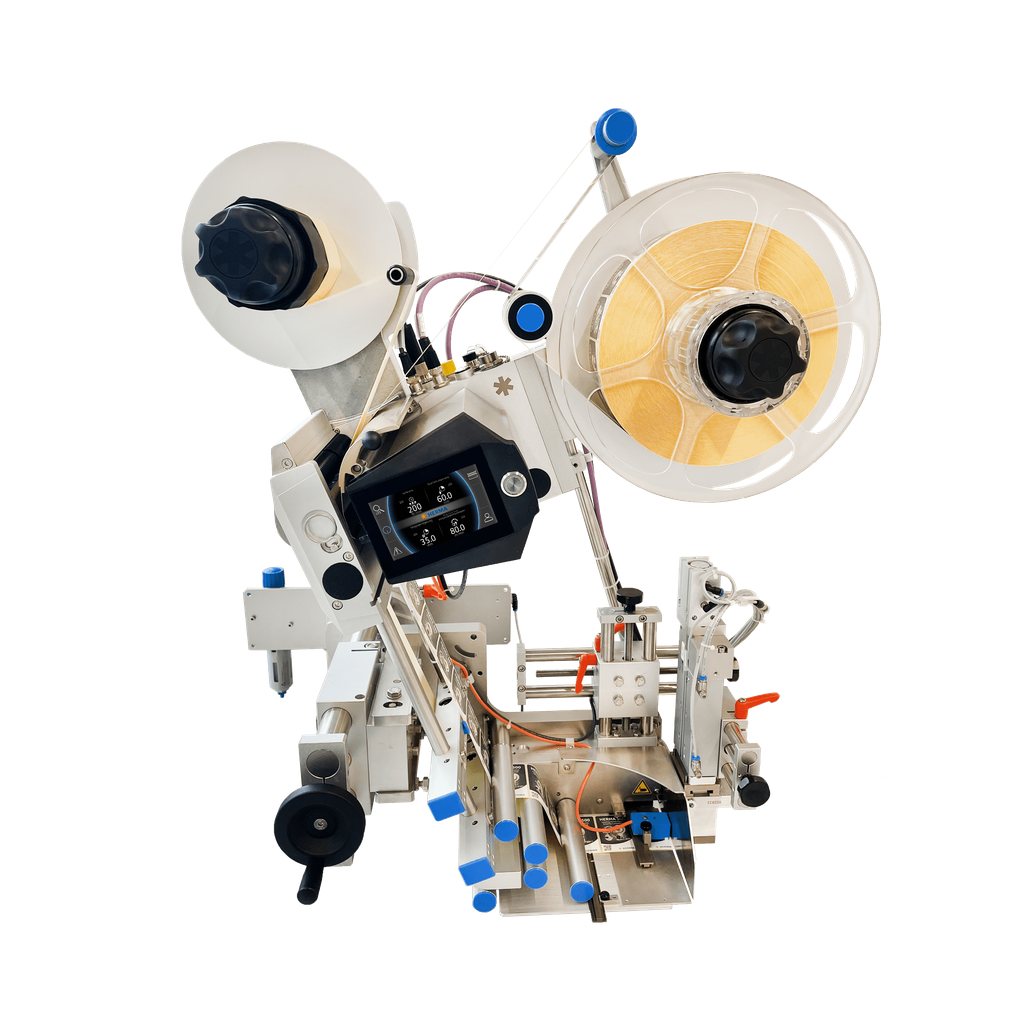

High-performance applicator HERMA 500 with integrated control and convenient adjustment of all parameters via the integrated touchscreen.
Variable data:
On request, different printers can be integrated to print variable data.
Integrable labeling system, versatile in use for top/side/bottom labeling:
For many applications, absolutely precise labeling along with high repeatability is crucial. This is particularly important for technical and safety-related aspects. Electronic components with functional labels are only one example. But visual reasons also play an important role, such as decorative labels for fast-moving consumer goods. Typical applications are the separation of complex labels or the application of self-adhesive functional labels, such as membranes, RFID labels or self-adhesive seals and foams.
HERMA 500 MB range – standardized to customized special solutions:
All-in-one solution: label supply by the moving peel plate • label application via transfer unit and tamp pad • control completely integrated in the HERMA 500 • convenient and intuitive operation via touchscreen.
Special solutions: label supply by the moving peel plate • if required, without transfer unit and tamp pad • label application via OEM solutions, e.g. with robots picking up the labels and placing them onto the products • if required, communication interfaces like Profinet, Ethernet/IP or Modbus to integrate the HERMA 500 MB into a higher-level control (PLC) • integration of printers for variable data printing.
This is how it works:
Separated and centered, the products are fed to the HERMA 500 MB. After the labeling start, the movable peel plate transports the label under the tamp pad of the transfer unit. The label on the tamp pad is then applied to the product by the transfer unit with high precision and repeatability. This guarantees optimum results both on products with flat surfaces and on surfaces with raised or recessed areas, even at up to 70 products per minute.
Precise labeling of various products:
Whether you work in the cosmetics, pharmaceutical, automotive, food or consumer goods industries, the HERMA 500 MB labels precisely and reliably to meet optical as well as safety-relevant requirements. Applications already labeled successfully include batteries, button cells, cups, aluminum tubes, blister packs, caps, diagnostic tubes, plastic bottles, folded cartons, shaped bottles, inhalers, insulin pens, cartridges, cosmetic pens, rubber parts, packed food, perfume boxes, tubular bags, electronic components, thermoformed packaging, tobacco products and much more.
